Door Force Testa

Quickly and accurately measure the door closing force on a Bus

How does the door force testa work?

The Door Force Testa from Circuitlink measures the door closing force in relation to bus door safety. The Door Force Testa is based off our BTRx range and will also measure average and peak deceleration, stopping distance, test speed and brake pedal pressure required to stop a vehicle. The Door Force Testa units are designed for Road Worthiness and Safety Inspections for buses, whilst can also be used as a Brake Testa for all types of On-Road and Off-Road vehicles , by Circuitlink, the proven leader in portable brake testing equipment.
  • Manufactured and designed for global industry and regulatory standards including Road Worthiness Inspection Stations, Mine Sites and Fleet Safety compliance.
  • Uses Lithium battery and thermal printer technology, completes hundreds of tests on single charge
  • Large onboard memory easily accessible by USB means tests can be recalled or reprinted at a later date or downloaded to PC for storage
  • GPS on board provides accurate timekeeping for regulatory compliance Optional GPS location services for regulatory requirements such as QLD CL subclass and NSW Mobile Mechanics
  • Will test multiple doors (for bendy buses for example)
  • Safely run tests to detect door obstruction
  • Includes wooden rod to simulate wrist of child for obstruction test

Applications

The Door Force Testa is used in accordance with Government regulations to conduct Road worthiness, Vehicle safety and compliance inspections by:

Workshops and Authorised Inspection Stations
Vehicle Safety Inspectors
In Traffic Accident Investigations
Coach Building

Door force testa Features

User-Friendly Operation

The simple orperation of the Door Force Testa means that one person is able to run a complience test easily with the simple step through guide via the LCD screen on the unit.

Applicable for all Bus doors

The Door Force Testa can be used to assess the effectiveness of the buses on board, door saftey system. As per the Technical Specification – TS146, the Door Force Tester can simulate the detection of the wrist of a child. 6 measurements are taken at multiple heights of the door and at specific closing distances.

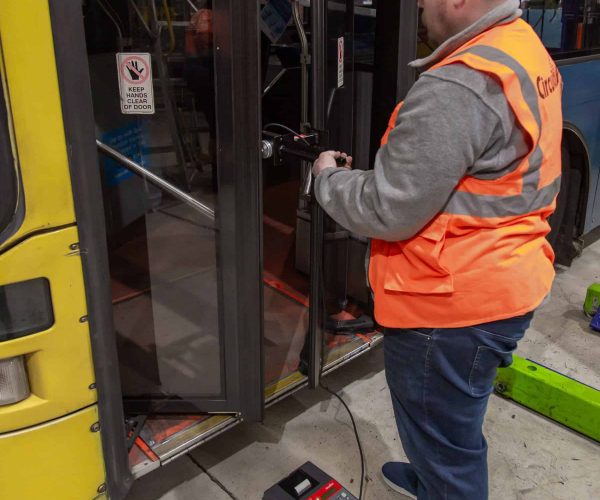

IM2_4297

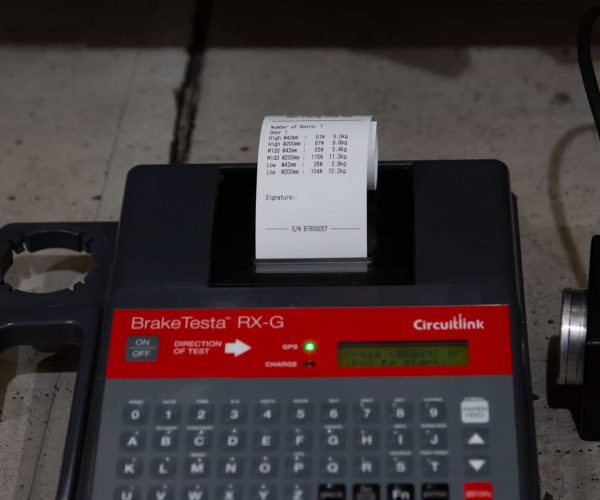

IM2_4309

Data Interpreted Automatically

The Door Force Testa interprets and prints a result after a test has been completed. The data that the unit interprets is when the door is being closed, the steady force applied to an object which is located at any position up to 1500mm above the door step will not exceed 150N when measured from 20 millimetres to 300 millimetres from the fully closed position.

Specifications

Poer

Li-Ion 5000mAh, 3.7V rechargeable battery

Communications

WiFi, Bluetooth (Pending Software Update)

Operating Temperature

– 10 to 50 °C

Size

260 x 280 x 700 mm

Inputs

USB Port

Box

Polycarbonate

Memory

Solid State 4GB eMMc

Display

2 Line 16 Character LCD

Calibration

2 years

Complience

Complied with TS155/TS146 in relation to Bus Door Safety Systems
